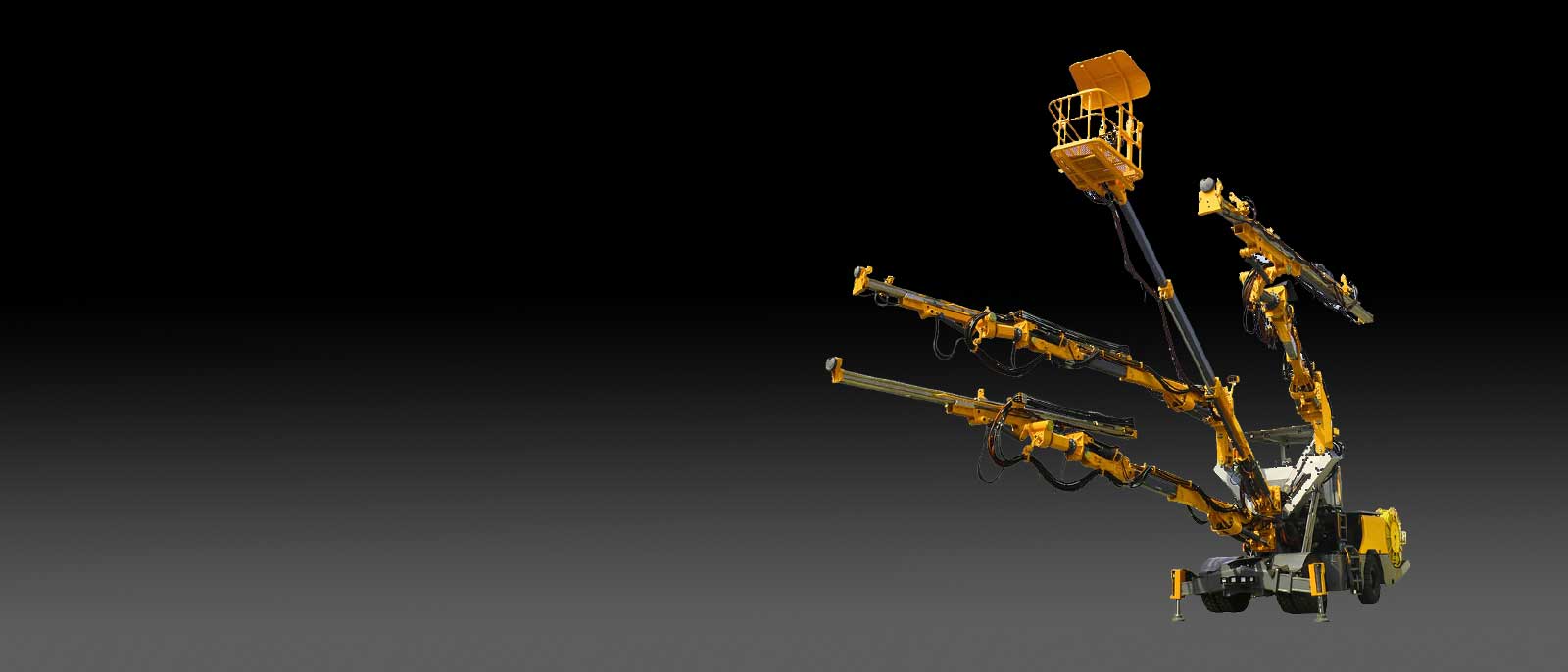

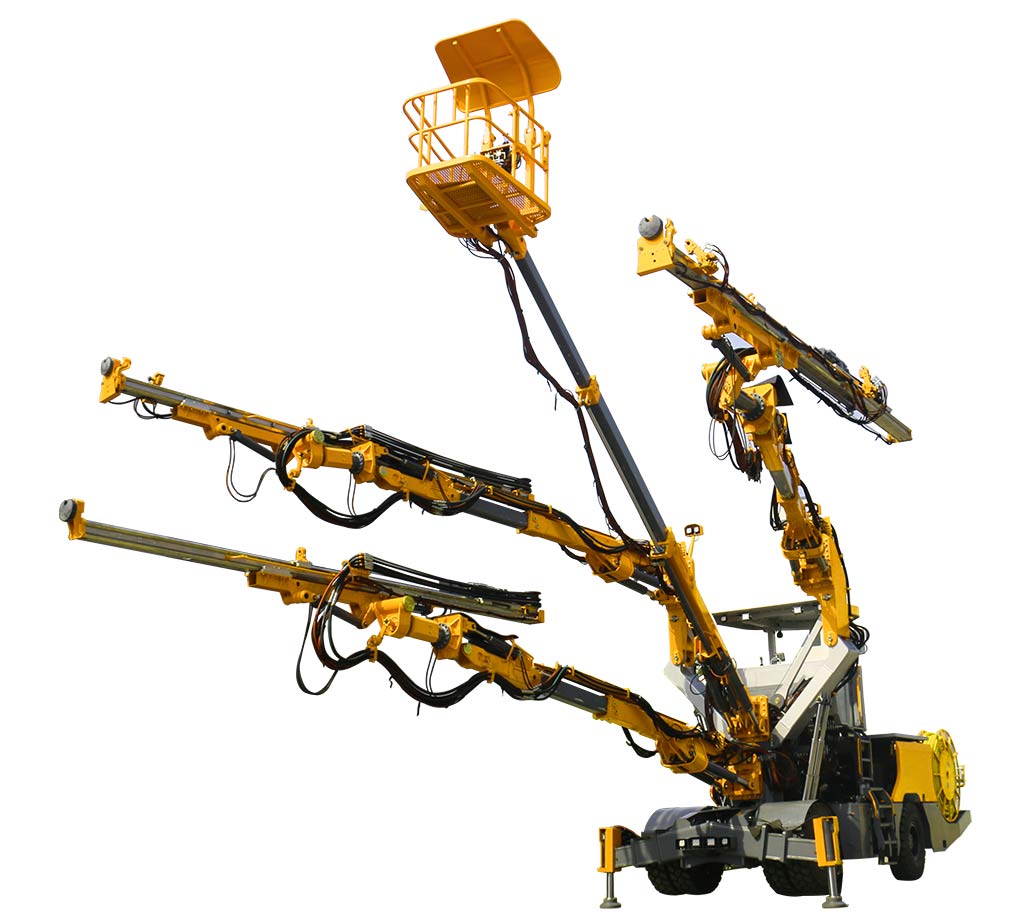

QMC UJ33


UJ 33 SPECIFICATIONS
NUMBER OF BOOMS 3 + 1 Service platform
HOLE RANGE mm 45 - 89
ROD LENGTH mm 5525
HYDRAULIC DRIFTER IMPACT POWER Kw 20
ROTATION SPEED Rpm 0 - 340
ROTATION SYSTEM Independent Rotation
SHANK R32 / T38
WATER PUMP WORKING PRESSURE Bar 17.5
FREE AIR DELIVERY m3/h 18
AIR COMPRESSOR WORKING PRESSURE Bar 8
FREE AIR DELIVERY m3/h 1
DIESEL ENGINE Brand Cummins
Kw

179

ELECTRIC MOTOR Kw 55 x 3
CHASSIS TRAMMING SPEED max Km/h 17 high - 10 - 5 low
CLIMBING ABILITY () ° 15
TURNING RADIUS (I/O) mm 6.500 / 12.100
WORKING FACE (WxH) mm 16.300 x 13.200
WORKING AREA m2 180
WEIGHT Kg 51000
SHIPPING DIMENSIONS (LXWXH) mm 17.092 x 2.930 x (3.159 Retr- 3.859 Ext)
