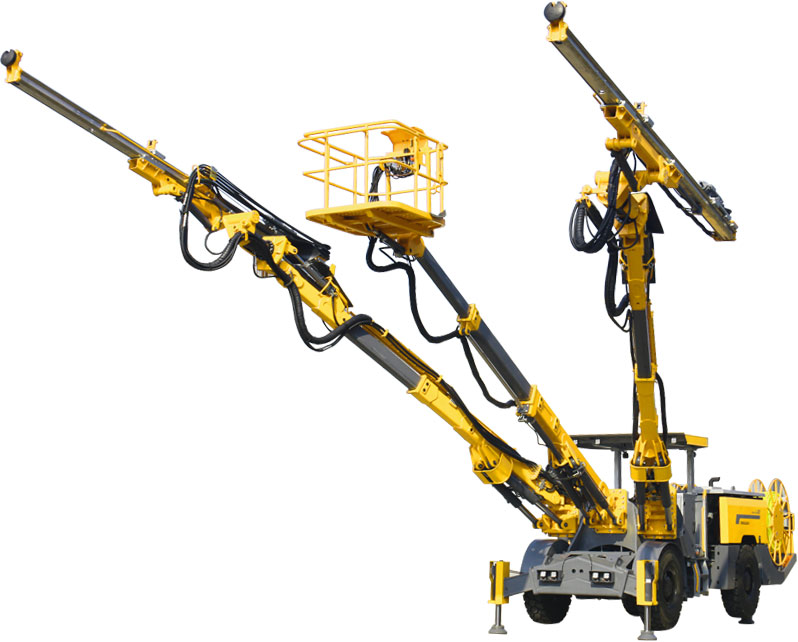

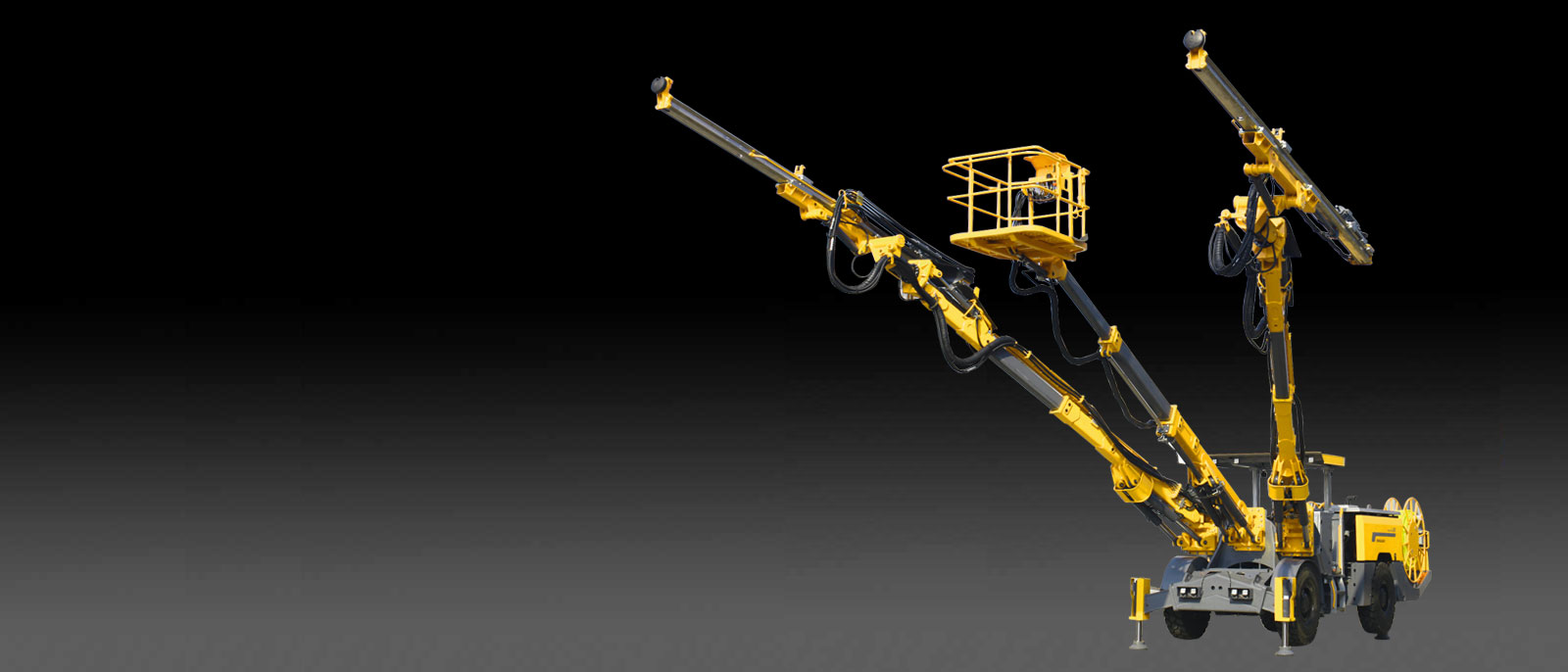

| UJ 22 SPECIFICATIONS | |||
| NUMBER OF BOOMS | 2 + 1 Service platform | HOLE RANGE | mm | 45 - 89 |
| ROD LENGTH | mm | 5525 | |
| HYDRAULIC DRIFTER | IMPACT POWER | Kw | 20 |
| ROTATION SPEED | Rpm | 0 - 340 | |
| ROTATION SYSTEM | Independent Rotation | ||
| SHANK | R32 / T38 | ||
| WATER PUMP | WORKING PRESSURE | Bar | 15 |
| WATER SUPPLY | m3/h | 14 | |
| AIR COMPRESSOR | WORKING PRESSURE | Bar | 8 |
| FREE AIR DELIVERY | m3/h | 1 | |
| DIESEL ENGINE | Brand | Cummins QSB5.9-C170-30 | |
| Kw | 125 |
||
| ELECTRIC MOTOR | Kw | 55 x 2 | |
| CHASSIS | TRAMMING SPEED max | Km/h | 14,5 high - 6,5 - 3,7 low |
| CLIMBING ABILITY | () ° | 15 | |
| TURNING RADIUS (I/O) | mm | 4.800 / 8.200 | |
| WORKING FACE (WxH) | mm | 13.800 x 9.700 | |
| WORKING AREA | m2 | 110 | |
| WEIGHT | Kg | 34000 | |
| SHIPPING DIMENSIONS (LXWXH) | mm | 16.800 x 2.500 x (2700 / 3400) | |
