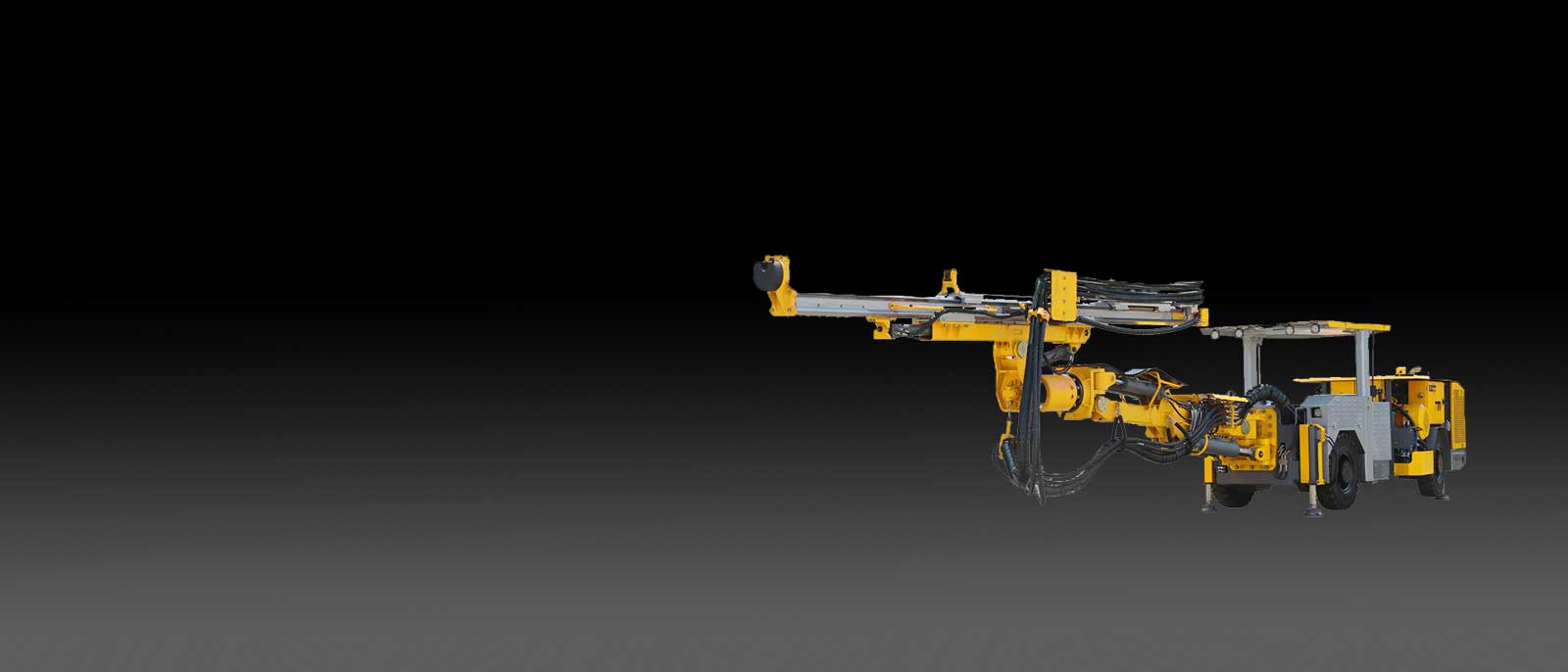

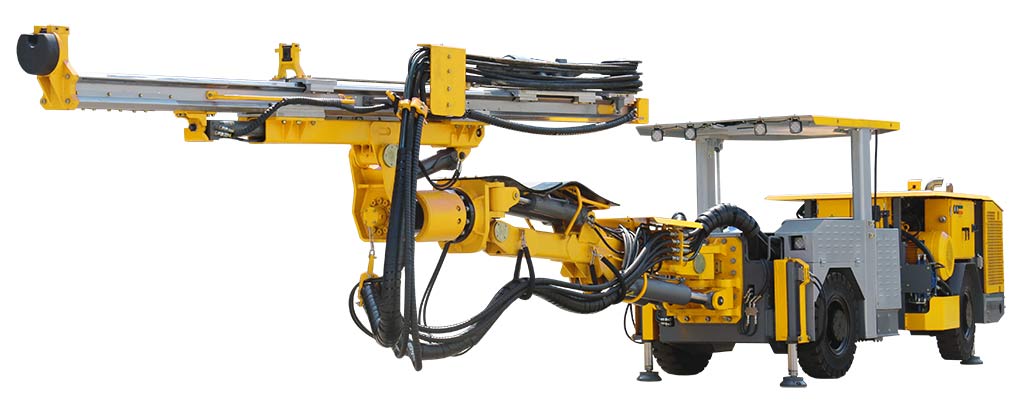

| UJ 18 SPECIFICATIONS | |||
| HOLE RANGE | mm | 45 - 89 | |
| ROD LENGTH | mm | 3660 | |
| DRILLING DEPTH | m | 35 | |
| HYDRAULIC DRIFTER | IMPACT POWER | Kw | 20 |
| ROTATION SPEED | Rpm | 0 - 340 | |
| ROTATION SYSTEM | Independent Rotation | ||
| SHANK | R32 / T38 | ||
| FEED BEAM LENGTH | 5500 | ||
| WATER PUMP | WORKING PRESSURE | Bar | 12 |
| FREE AIR DELIVERY | m3/h | 2 | |
| AIR COMPRESSOR | WORKING PRESSURE | Bar | 8 |
| FREE AIR DELIVERY | m3/h | 0.5 | |
| DIESEL ENGINE | Brand | Cummins | |
| Kw | 75 |
||
| ELECTRIC MOTOR | Kw | 55 | |
| CHASSIS | TRAMMING SPEED max | Km/h | 11,5 high - 5,6 low |
| CLIMBING ABILITY | () ° | 15 | |
| TURNING RADIUS (I/O) | mm | 2.600 / 4.600 | |
| WORKING FACE (WxH) | mm | 5.612 x 4.340 | |
| WORKING AREA | m2 | 15 | |
| WEIGHT | Kg | 11000 | |
| SHIPPING DIMENSIONS (LXWXH) | mm | 12.160 x 1.450 x (1400 Retr- 2.035 Ext) | |
