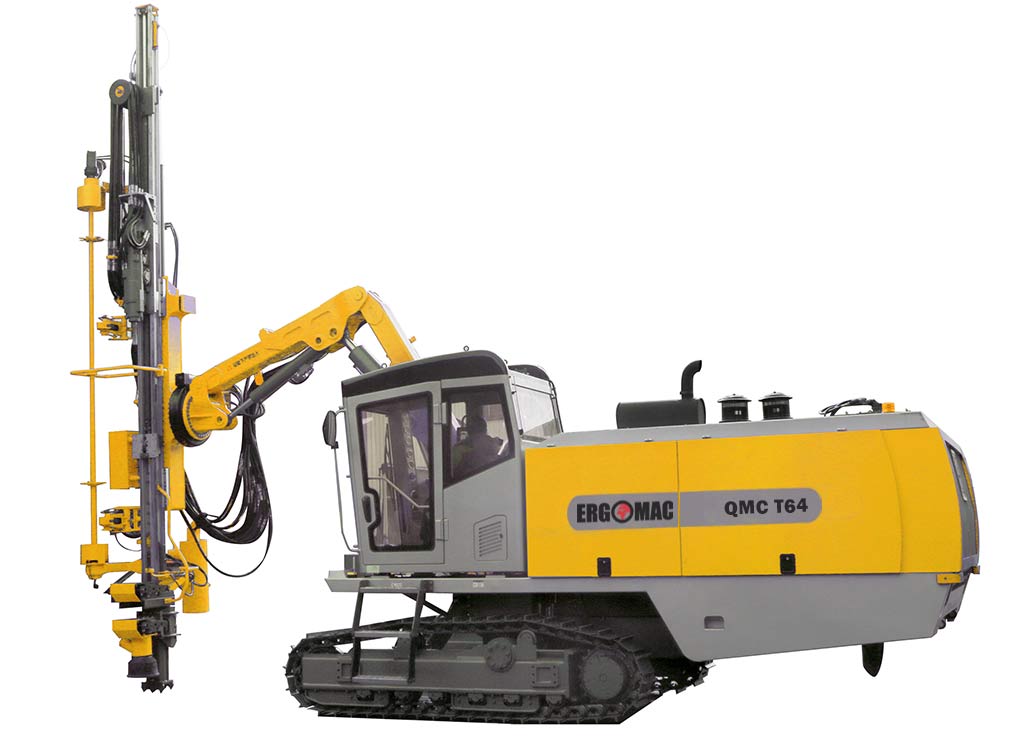

| QMC T64 SPECIFICATIONS | ||||
| HOLE RANGE | mm | 64 - 115 | ||
| DRIFTER IMPACT POWER | Kw | 20 | ||
| DRILLING DEPTH | m | 20 - 25 | ||
| ROD DIAMETER | mm | 38 - 45 - 51 | ||
| ROD LENGTH | mm | 3660 | ||
| ROD CHANGING DEVICE | Stantard | (5+1) alt (6+1) Auto | ||
| BOOM TYPE | Fold Boom | |||
| FEED LENGTH | 7320 | |||
| AIR COMPRESSOR | WORKING PRESSURE | Bar | 8 alt 10 | |
| FREE AIR DELIVERY | m3/min | 7 alt 8 | ||
| DIESEL ENGINE | Brand | Doosan | Cummins | |
| Kw | 184 | 152 | ||
| Stage | V | III | ||
| CHASSIS | TRAMMING SPEED max | Km/h | 3,1 high - 1,5 low | |
| CLIMBING ABILITY | ( )° | 25 | ||
| TRACTION FORCE | KN | 138 | ||
| TRACK OSCILLATION | (+/- ) ° | 10 | ||
| GROUND CLEARANCE | mm | 390 | ||
| ROTATION TORQUE | Nm | 1180 | ||
| ROTATION SPEED | Rpm | 0 - 135 | ||
| FEED FORCE | KN | 20 | ||
| PULL UP FORCE | KN | 20 | ||
| WEIGHT | Kg | 15000 | ||
| SHIPPING DIMENSIONS (LXWXH) | mm | 11.300 x 2550 x 3100 | ||
