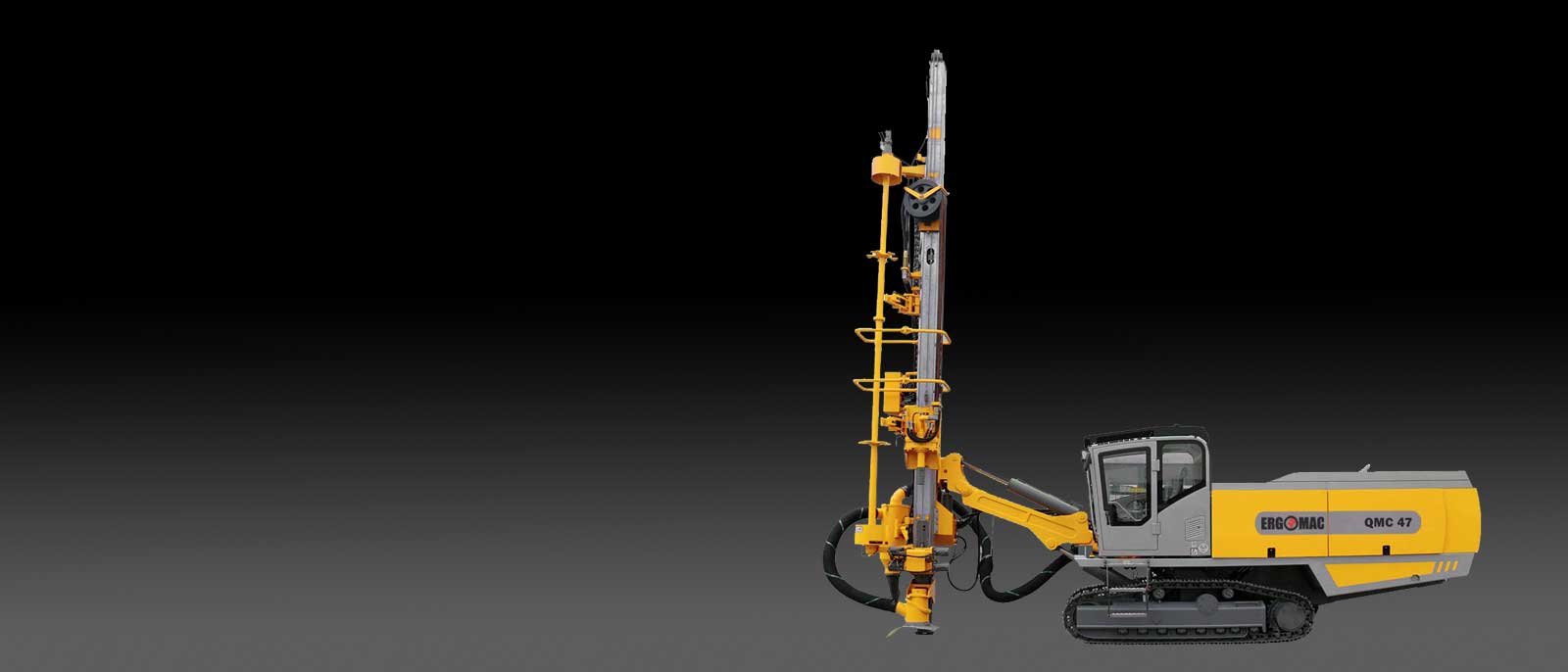

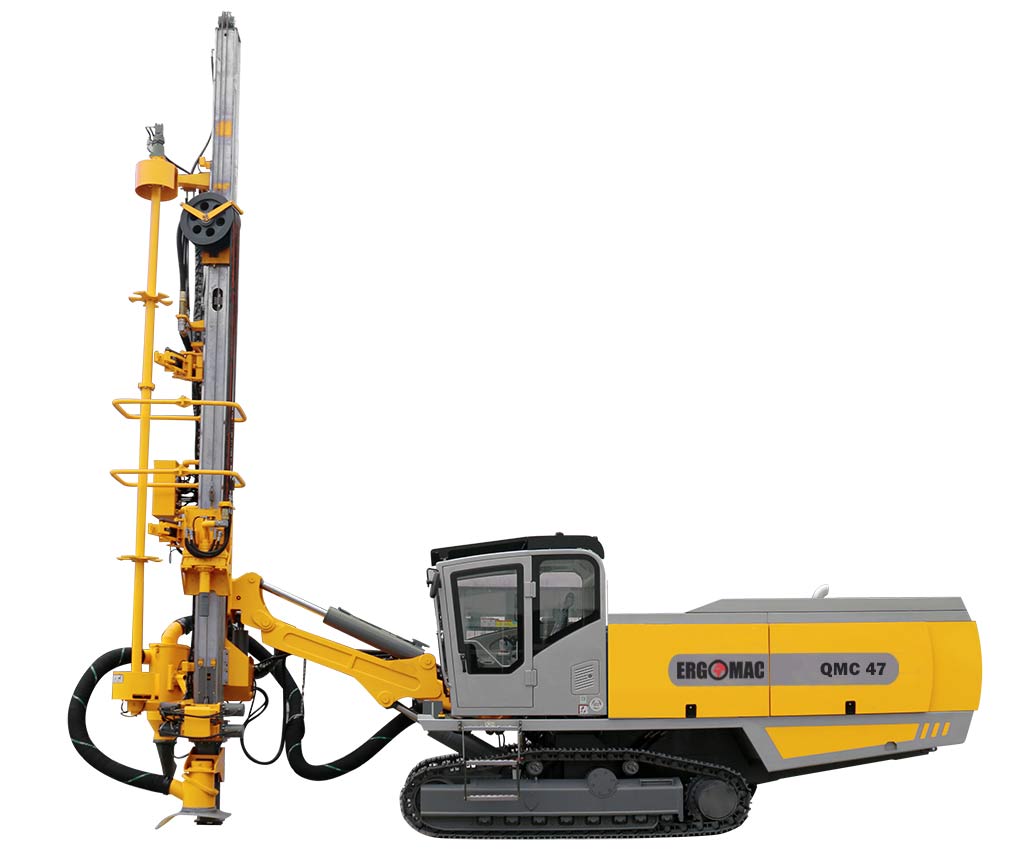

QMC 47


QMC 47 SPECIFICATIONS
HOLE RANGE mm 138 - 165
AIR COMPRESSOR WORKING PRESSURE 24
FREE AIR DELIVERY 21
DRILLING DEPTH m 35
ROD DIAMETER mm 114 (102 Optional)
ROD LENGTH mm 6000
DRILL ROD (PIPE) HANDLING SYSTEM (RHS) PCS (4+1)
ENGINE Brand Caterpillar
Kw

287

ROTATION TORQUE Nm 4435
ROTATION SPEED Rpm 0 - 105
FEED FORCE KN 34.5
PULL UP FORCE KN 67.6
TRAMMING SPEED Km/h 3
TRACTION FORCE KN 158,2
CLIMBING ABILITY ( ) ° 25
TRACK OSCILATION (+/- ) ° 10
GROUND CLEARANCE mm 420
DUST COLLECTOR   STANDARD
WEIGHT Kg 23500
SHIPPING DIMENSIONS (LXWXH) mm 11.550X2.700X3.560
