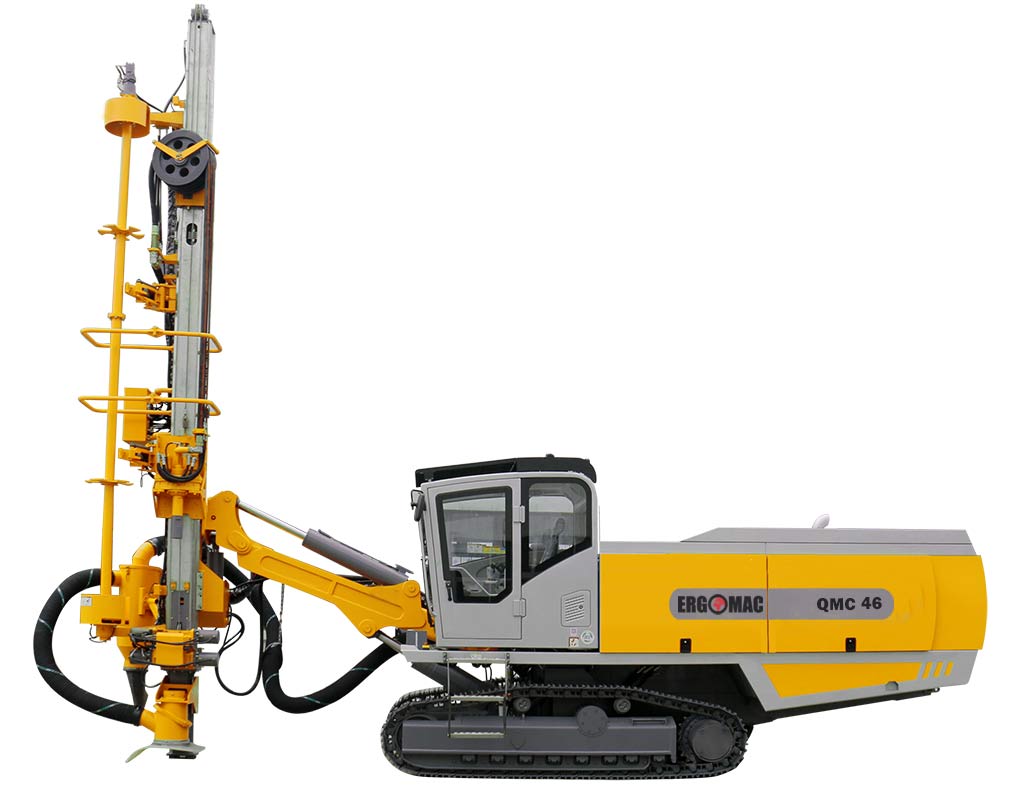

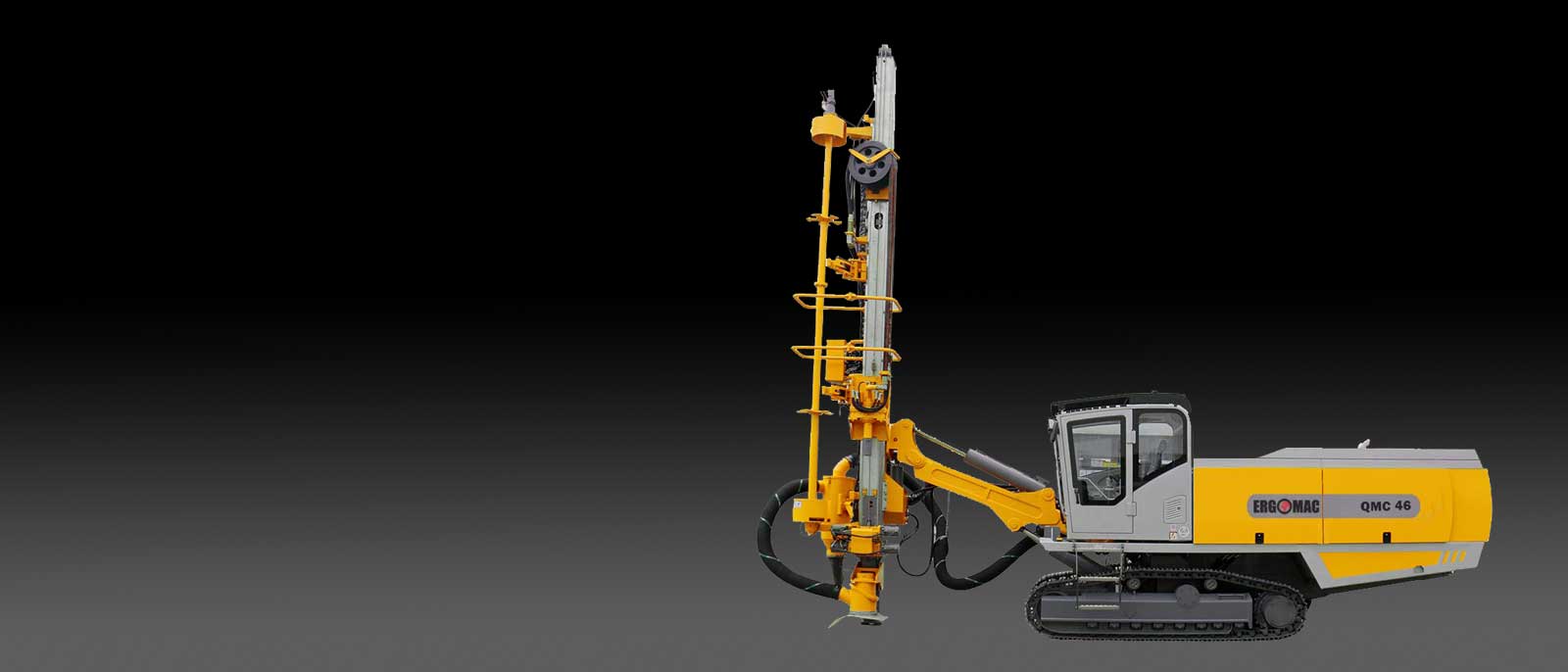

| QMC 46 SPECIFICATIONS | |||
| HOLE RANGE | mm | 115 - 152 | |
| AIR COMPRESSOR | WORKING PRESSURE | 21 | |
| FREE AIR DELIVERY | 19 | ||
| DRILLING DEPTH | m | 35 | |
| ROD DIAMETER | mm | 102 | |
| ROD LENGTH | mm | 5000 (Optional 6000 or 7000) |
|
| DRILL ROD (PIPE) HANDLING SYSTEM (RHS) | PCS | (6+1) | |
| ENGINE | Brand | Cummins | |
| Kw | 264 |
||
| ROTATION TORQUE | Nm | 4435 | |
| ROTATION SPEED | Rpm | 0 - 105 | |
| FEED FORCE | KN | 34.5 | |
| PULL UP FORCE | KN | 67.6 | |
| TRAMMING SPEED | Km/h | 3 | |
| TRACTION FORCE | KN | 156,2 | |
| CLIMBING ABILITY | ( ) ° | 25 | |
| TRACK OSCILATION | (+/- ) ° | 10 | |
| GROUND CLEARANCE | mm | 420 | |
| DUST COLLECTOR | STANDARD | ||
| WEIGHT | Kg | 22000 | |
| SHIPPING DIMENSIONS (LXWXH) | mm | 11.550X2.700X3.560 | |
