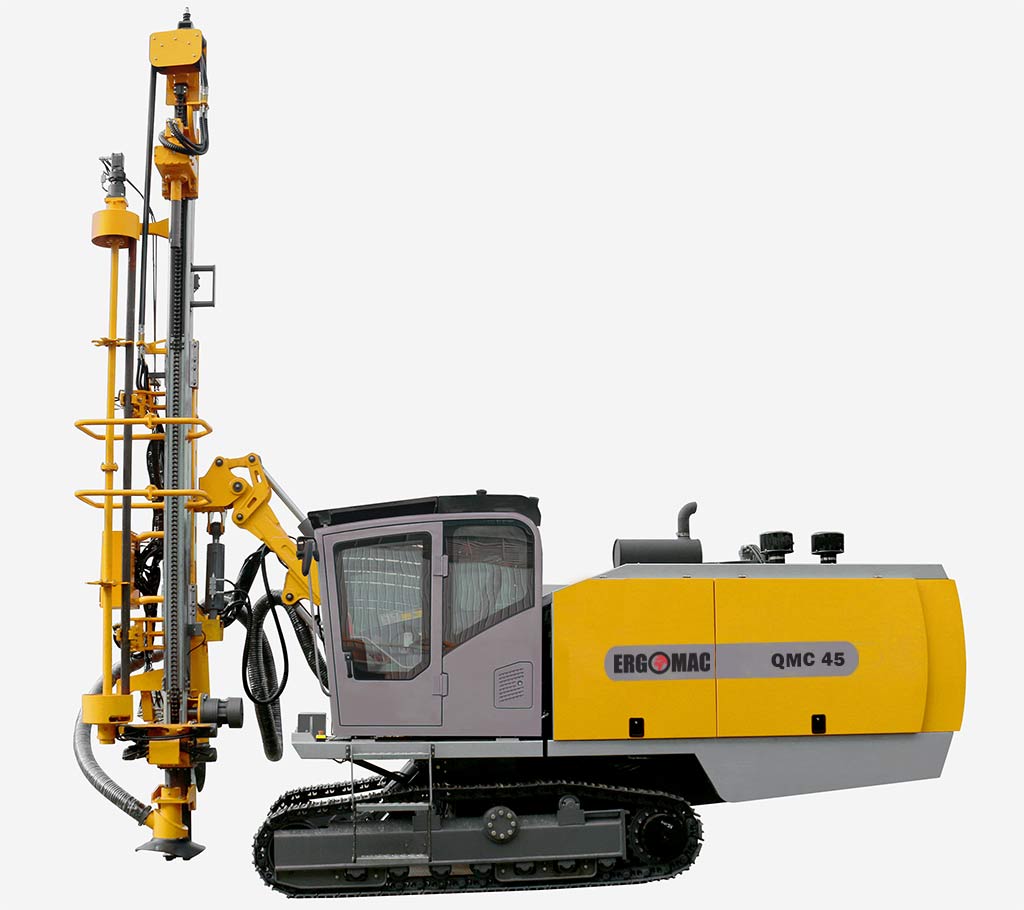

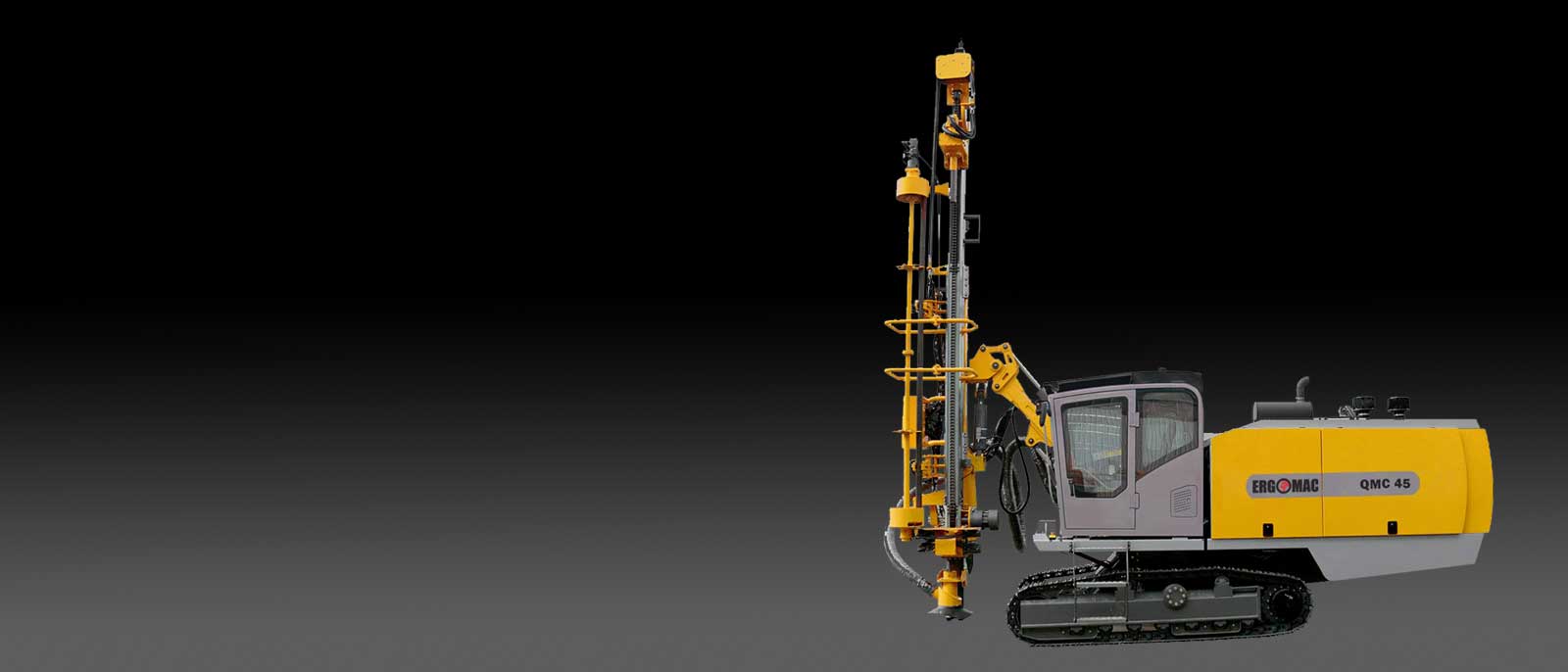

| QMC 45 SPECIFICATIONS | |||
| HOLE RANGE | mm | 115 - 138 | |
| AIR COMPRESSOR | WORKING PRESSURE | 21 | |
| FREE AIR DELIVERY | 18 | ||
| DRILLING DEPTH | m | 28 | |
| ROD DIAMETER | mm | 76 | |
| ROD LENGTH | mm | 4000 | |
| DRILL ROD (PIPE) HANDLING SYSTEM (RHS) | PCS | (6+1) | |
| ENGINE | Brand | Cummins | |
| Kw | 194 |
||
| ROTATION TORQUE | Nm | 2800 | |
| ROTATION SPEED | Rpm | 0 - 105 | |
| FEED FORCE | KN | 15 | |
| PULL UP FORCE | KN | 31 | |
| TRAMMING SPEED | Km/h | 3 | |
| TRACTION FORCE | KN | 115,4 | |
| CLIMBING ABILITY | ( ) ° | 30 (Winch >20) | |
| TRACK OSCILATION | (+/- ) ° | 10 | |
| GROUND CLEARANCE | mm | 450 | |
| DUST COLLECTOR | STANDARD | ||
| WEIGHT | Kg | 16000 | |
| SHIPPING DIMENSIONS (LXWXH) | mm | 9.980X2.480X3.200 | |
