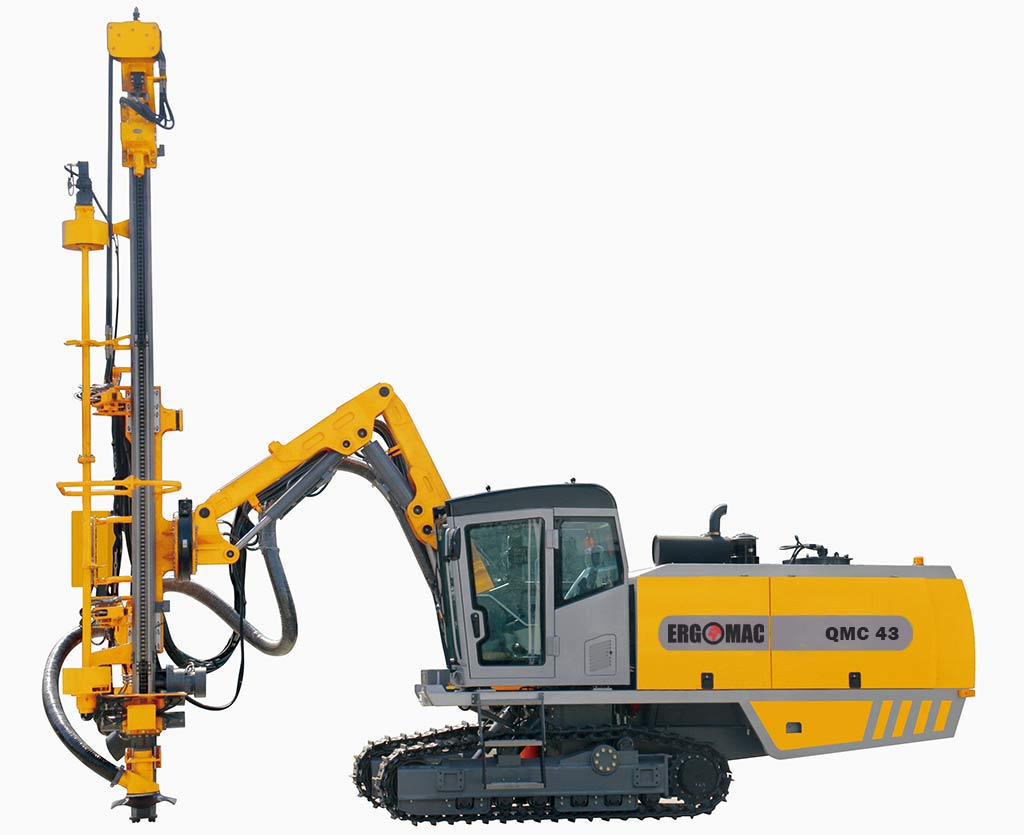

| QMC 43 SPECIFICATIONS | |||
| HOLE RANGE | mm | 90 - 130 | |
| AIR COMPRESSOR | WORKING PRESSURE | 18 | |
| FREE AIR DELIVERY | 15 | ||
| DRILLING DEPTH | m | 28 | |
| ROD DIAMETER | mm | 70 - 76 | |
| ROD LENGTH | mm | 4000 | |
| DRILL ROD (PIPE) HANDLING SYSTEM (RHS) | PCS | (6+1) | |
| ENGINE | Brand | Cummins / Deutz TDC 6.1 L6 | |
| Kw | 160 | ||
| ROTATION TORQUE | Nm | 2800 | |
| ROTATION SPEED | Rpm | 0 - 110 | |
| FEED FORCE | KN | 18 | |
| PULL UP FORCE | KN | 31 | |
| TRAMMING SPEED | Km/h | 3 | |
| TRACTION FORCE | KN | 165 | |
| CLIMBING ABILITY | ( ) ° | 30 (Winch >20) | |
| TRACK OSCILATION | (+/- ) ° | 10 | |
| GROUND CLEARANCE | mm | 380 | |
| DUST COLLECTOR | STANDARD | ||
| WEIGHT | Kg | 14800 | |
| SHIPPING DIMENSIONS (LXWXH) | mm | 11.300X2.550X3.100 | |
